Sketch model: Acoustic Guitar

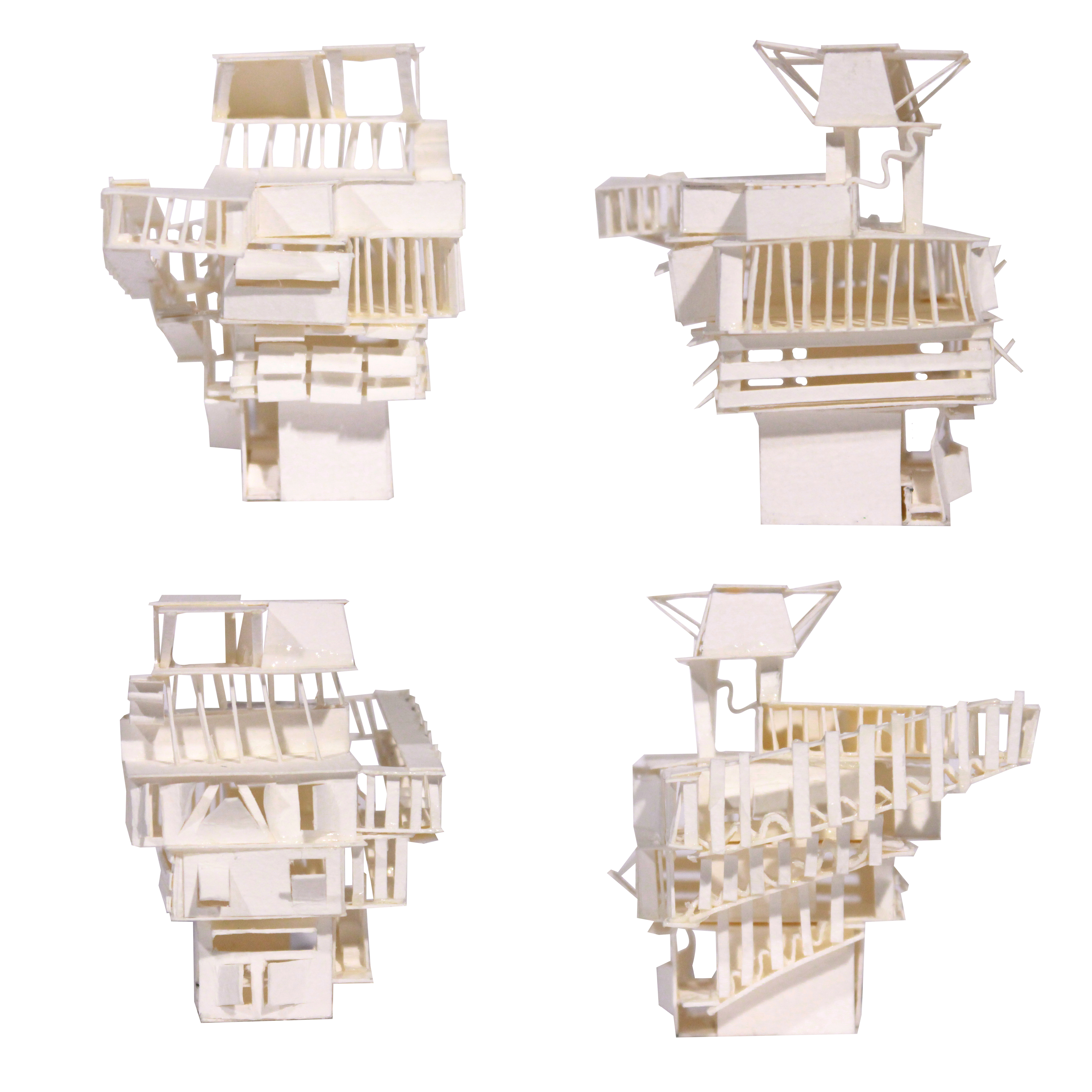

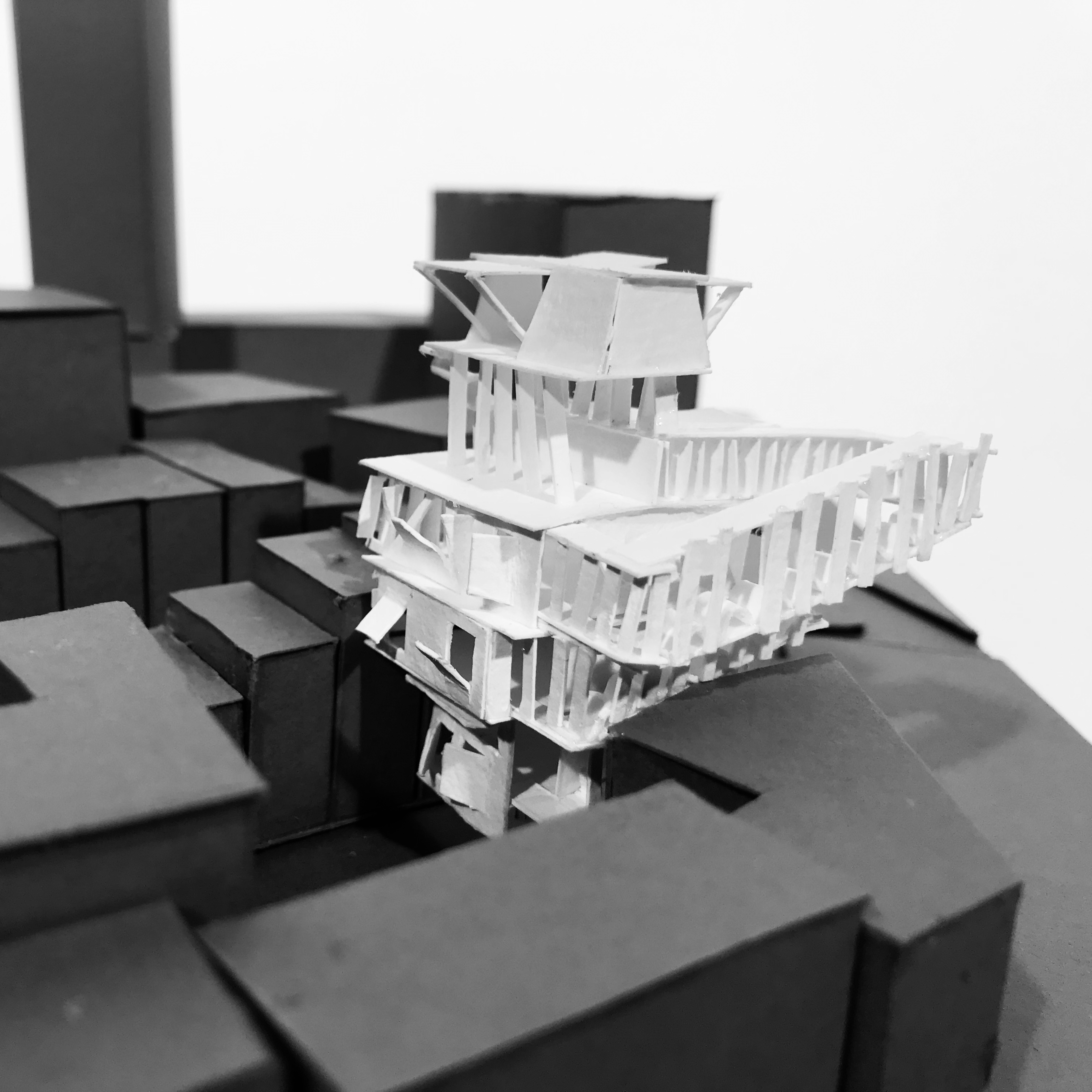

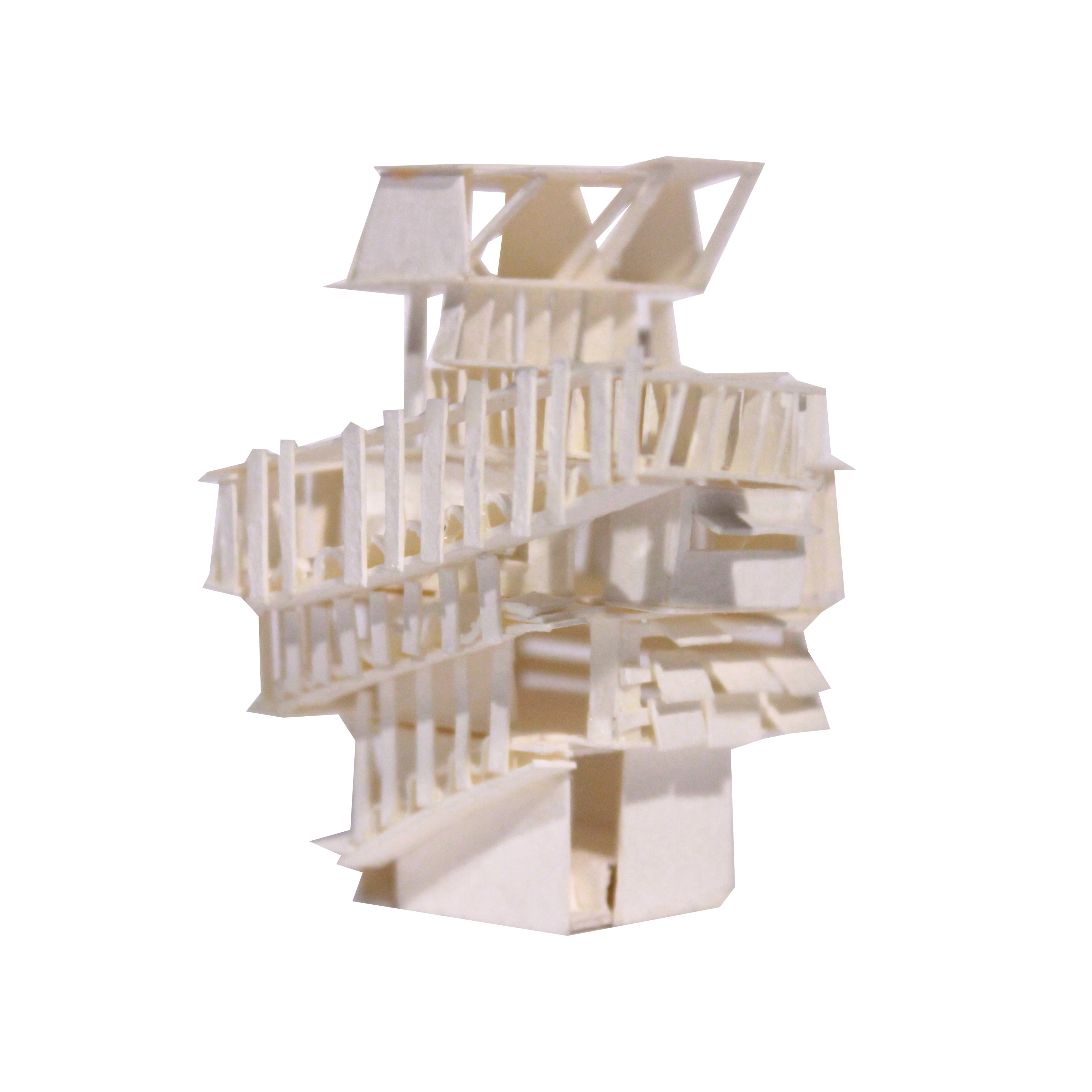

An acoustic guitar is formed by a wooden body and strings. I’m interested in the body of instrument formation and strings movements. In order to re-evaluating and researching architectural spaces in the guitar, I made sketch model that influenced by the guiar musical instrument.

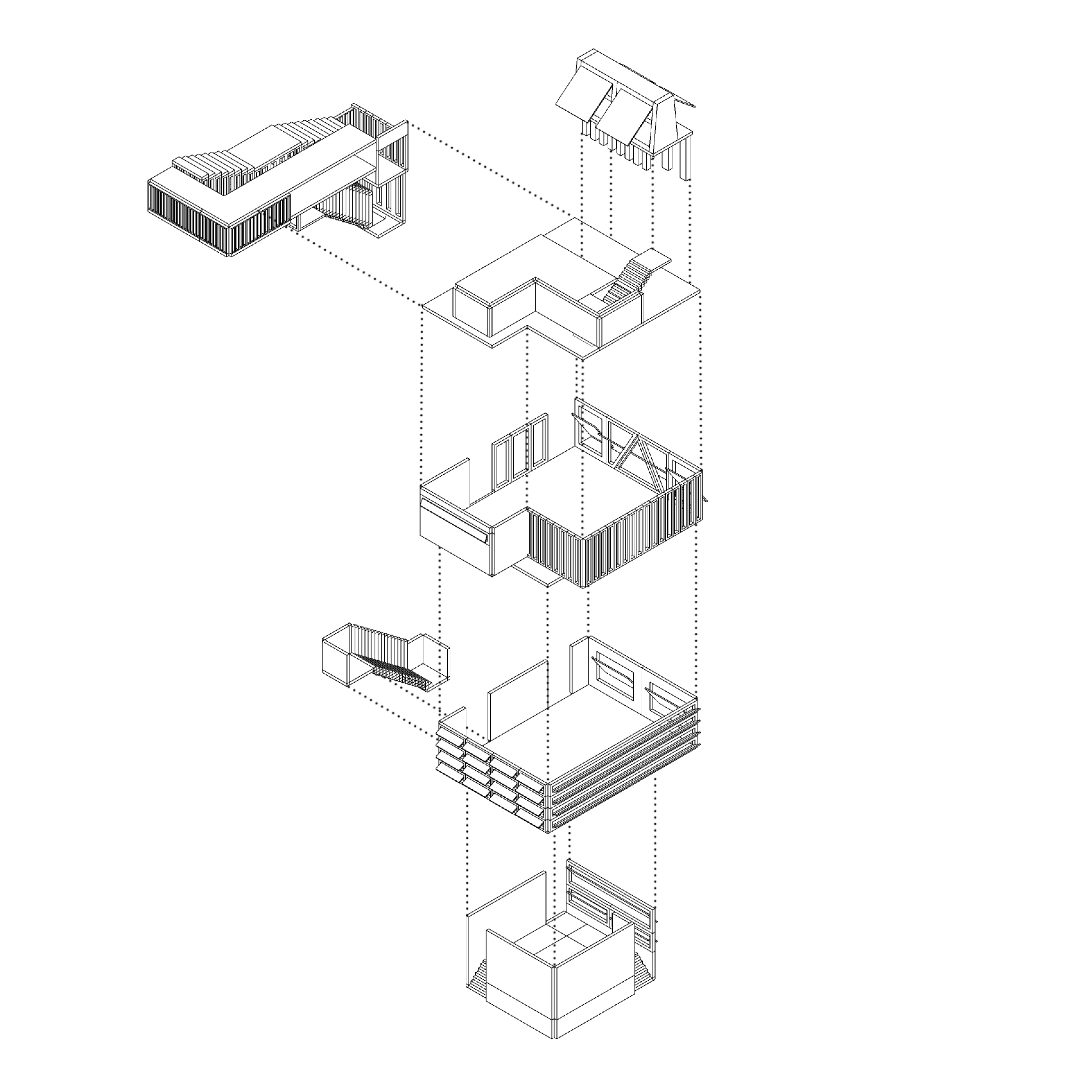

Each floors have been stacked as well as surfaces can be tunable and every single fin is repositioned like the guitar.

Scale 1:100
